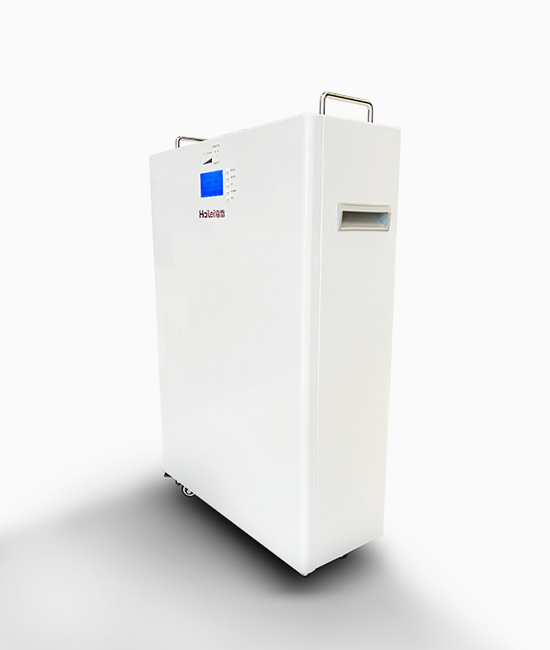

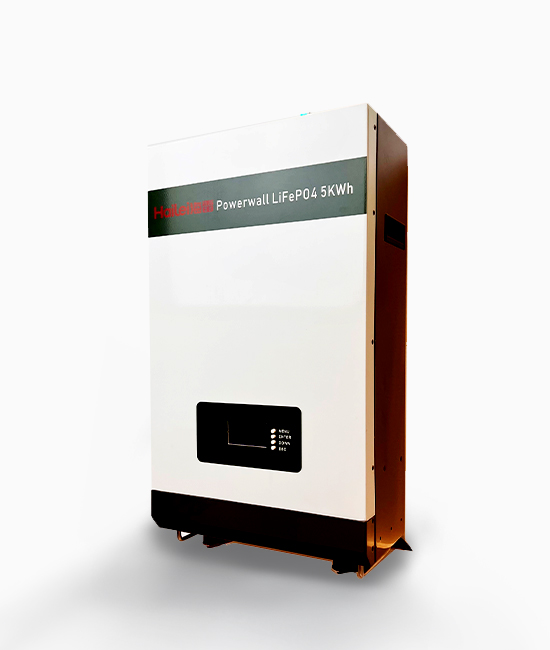

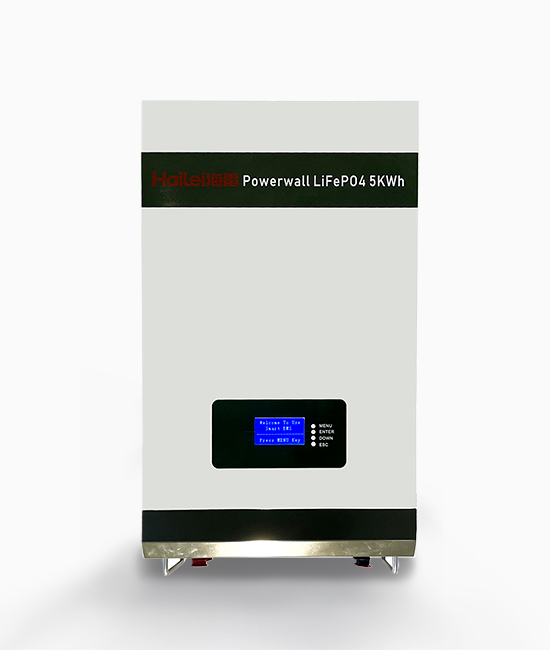

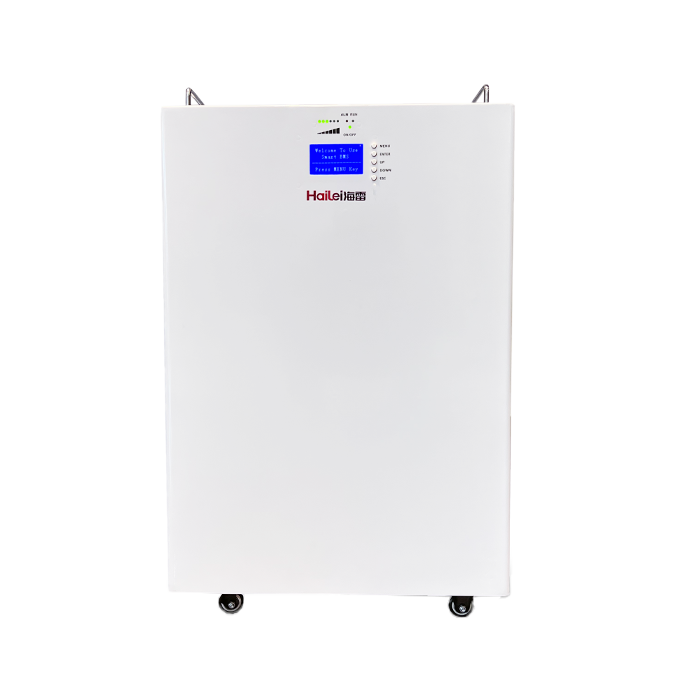

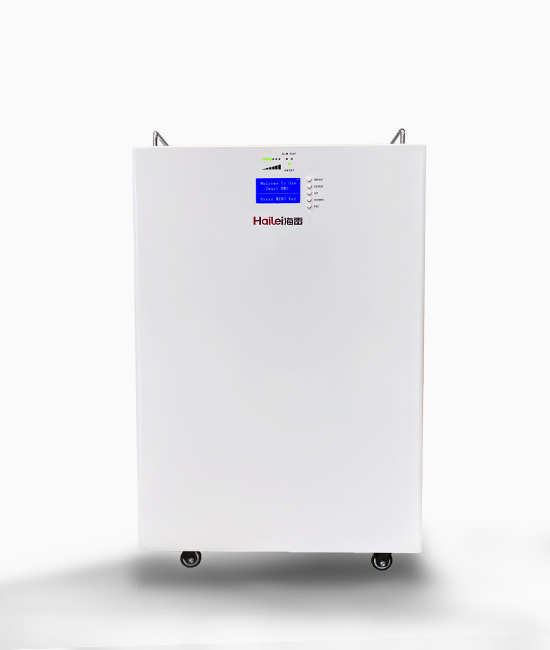

48V Wall-mounted Lithium ion battery_ShenZhen HaiLei New Energy Co., Ltd.

Features

Light weight, Small size, Long cycle life, using high-quality LiFePO4 Cells, the cycle life is as high as 4000 times

Support a variety of communication protocols, support RS485, RS232, CAN etc.

Excellent safety performance. In the extreme performance safety test, the battery will not catch fire, explode, leak, and be safer to use.

Can be compatible use with the inverter include；Growatt，DEYE，GOODWE，SMA，SOLAX，SolarEdge，Voltronics，Sorotec.

Parameter

Model

HL-PW4810016S

Nominal Voltage

51.2V

Nominal Capacity

100Ah

Energy

5120Wh

Internal Impedance

≤180mΩ

Cycle life

4000 cycles

Max charge current

100A

Max discharge current

100A(continuous)

Standard discharging method

50A constant current discharge to 37.5V

Charge voltage

58.4V±0.05V

Communication Port

RS232,RS485,CAN

Working Temperature

Charge 0~45℃ ,Discharge -20~60℃

Battery Type

LiFePO4

Weight

52KG

Dimension

640*395*182mm

48V Wall-mounted Lithium ion battery

Features

Light weight, Small size, Long cycle life, using high-quality LiFePO4 Cells, the cycle life is as high as 4000 times

Support a variety of communication protocols, support RS485, RS232, CAN etc.

Support a variety of communication protocols, support RS485, RS232, CAN etc.

Excellent safety performance. In the extreme performance safety test, the battery will not catch fire, explode, leak, and be safer to use.

Can be compatible use with the inverter include；Growatt，DEYE，GOODWE，SMA，SOLAX，SolarEdge，Voltronics，Sorotec.

Parameter

Certification

Hailei VDE Certificate

Hailei HERO-HV-VDE2510-50

Hailei HERO-HV-IEC62619

Hailei VDE Certificate

Hailei UL certificate

Haieli HERO-HV-CE

Hailei CE Certificate

Hailei IEC Certificate

Hailei ICE Certificate

Hailei CE Certificate

Hailei UN38.3 test report

Hailei UN38.3 air transport

Hailei UN38.3 land transport

ISO9001:2015 certification

ISO9001:2015 certification

CQC product certification

Hailei CE Certificate

Hailei MSDS certification
