| Item | Parameters |
| Battery Cabinet Parameters | |

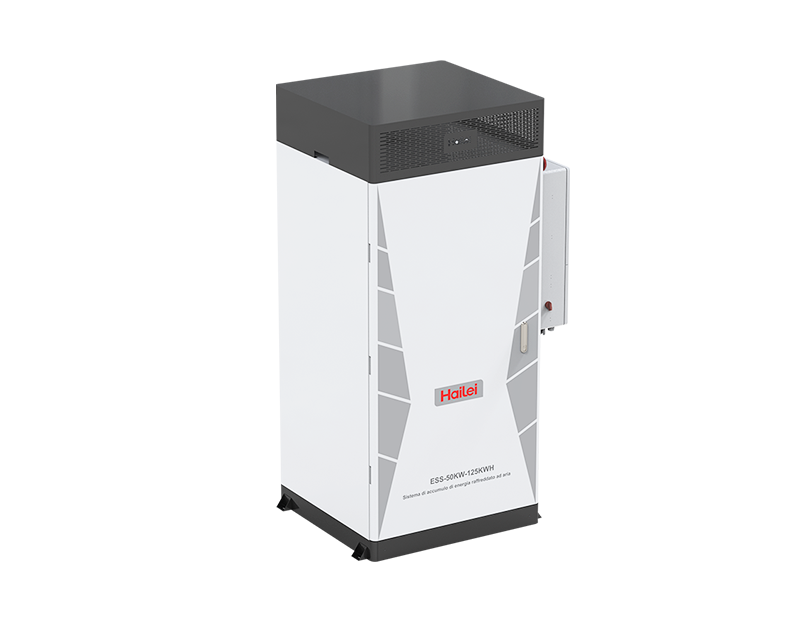

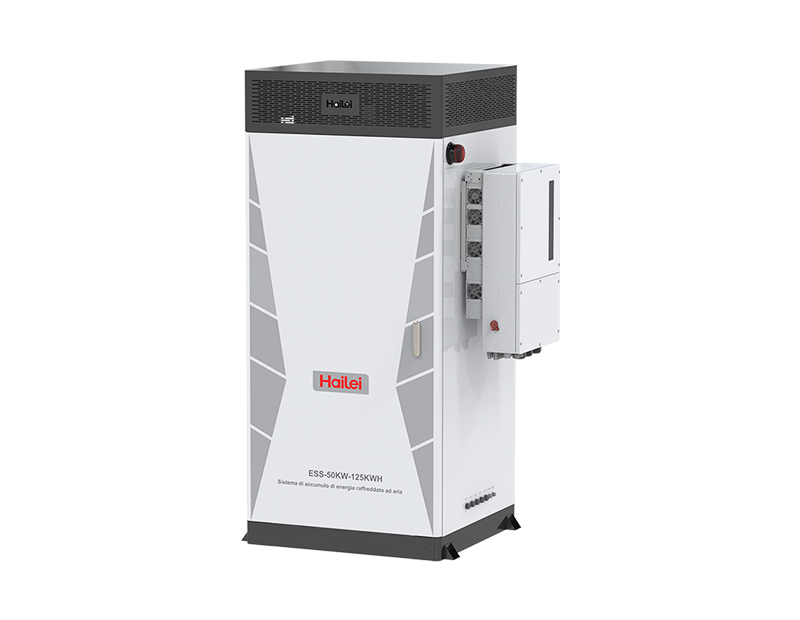

| Dimensions of outdoor energy storage cabinets | 1050mm(W)X1000mm(D)X2350mm(H) |
| Nominal Capacity | 314Ah |
| Nominal voltage | 409.6V |
| Standard charging current | 0.5C/25℃ |
| Maximum continuous discharge power | 160A/25℃ |
| Rated electricity | 128KWh |
| Working voltage range | 384V-460.8V |
| Maximum charging voltage | 3.6V |
| Single minimum discharge voltage | 3 |
| Protection level | IP65 |
| Cooling method | Top mounted air conditioning cooling |
| Battery string Parameters | |
| Battery pack size | 482.6mm(W)x750mm(D)x220mm(H) |
| Nominal capacity | 314Ah |
| Nominal voltage | 51.2V |
| Standard charging | 0.5C/25℃ |
| Maximum continuous discharge power | 0.5C/25℃ |
| Energy | 16.076KWh |
| Working voltage range | 48V-57.6V |
| Maximum charging voltage | 3.6V |
| Single minimum discharge voltage | 3.0V |
| Insulation performance | ≥1000Ω/V |
| Single cluster configuration information | |
| Battery | 51.2V314AH |
| BMU | 16S |
| High -pressure control box | 128S |
| Outdoor cabinet | 1050*1000*2350mm |
| Photovoltaic energy storage inverter | 50KW |
| Charging pile | 20KW |
| Fire Fighting System | FGS-XR1000E |
| Communication cable | Supporting facilities |
| Power cable | Supporting facilities |
