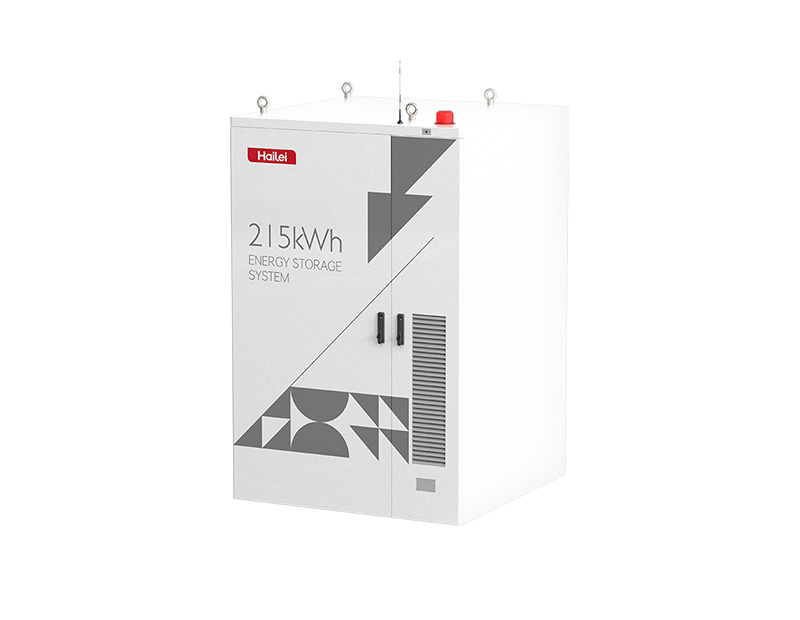

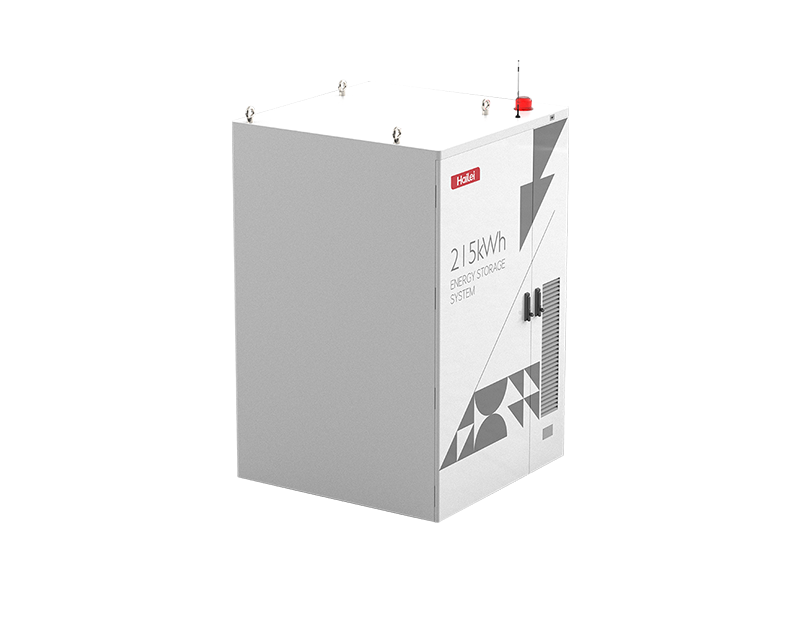

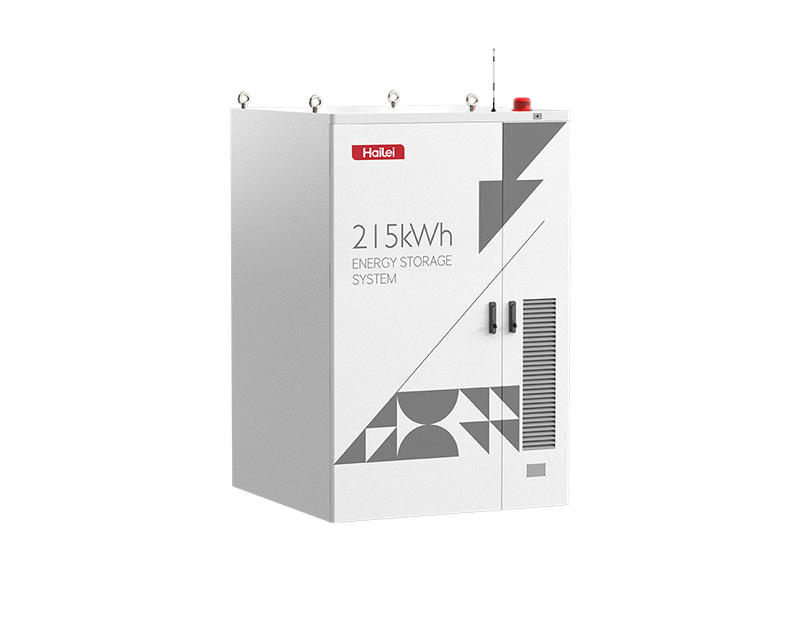

| Project | Parameters |
| Stand Parameters | |
| Battery Type | Lithium iron phosphate |
| Battery cabinet size | 1350mm(W)X1350mm(D)X2200mm(H) |
| Nominal Capacity | 280Ah |
| Nominal voltage | 768V |
| Standard charging rate | 0.5C |
| Maximum continuous discharge rate | 0.5C |
| Rated power | 215kWh |
| Operating voltage range | 672V-864V |
| Installation position | IP54 |
| Cooling mode | Liquid cooling system |
| Fire protection system | Perfluorohexanone |
| Continuous output power | 100KW |
| Battery pack Parameters | |
| 0.5C standard discharge capacity | ≥280Ah |
| Nominal Voltage | 166.4V |
| Operating voltage range | 156V-187.2V |
| Standard charge condition | Charge with 0.5C constant current and 189.8Vconstant voltage，charge to 189.8V continue charging till current declineto ≤0.05C |
| Maximum discharge current | 140A |
| Maximum charge current | 140A |
| Operation Temperature Range | Charge:0-45℃，Discharge:-20-55℃ |
| Battery pack size | 1097(L)x800(W)x246(H)mm |
| Run function | |
| Shaving peaks and filling valleys | Available (Standard) |
| Off-grid/parallel operation | Available (Optional) |
| Smooth photovoltaic output | Available (Optional) |
| Cooperate with smart microgrid | Available (Optional) |
| Backup power | Available (Optional) |
| Communication Parameters | |
| Communication Interface | Ethernet |
| Communication Protocol | Modbus RTU/Modbus TCP/MOTT/Kaf-ka/IEC60870-104/IEC61850 ETC |
