Residential energy storage system_Solar energy system_Home energy storage system-ShenZhen HaiLei New Energy Co., Ltd.

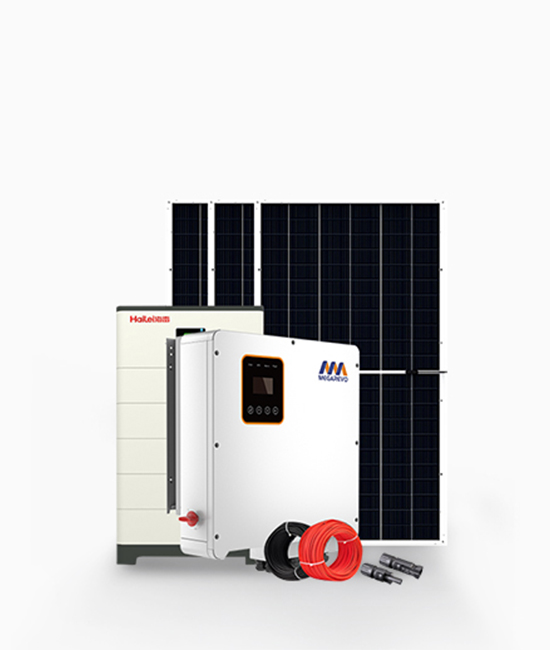

High Voltage Hybrid home solar power

Hailei hybrid High Voltage home solar power Solutions is suitable for residential and small commercial project, that aims to provide users with more sufficient and reliable energy storage.With flexible collocation, and the maximum energy storage can reach 327kWh.The newly designed system provides easy connector to save valuable time for installation.It can ensure the most efficient use of solar energy at home,increase self-consumption and grid independence, reduce your electricity bills.

Buy Now Download

Features

Complete home solar system solution,Modular battery design ,capacity can be freely combined up to 327kWh.

High voltage home solar system, higher energy conversion efficiency, less energy loss.

Long cycle life and superior performance,Module design help for quick installation.

Input power source priority can be set by users.

Intelligent battery management system, all-round monitoring of battery pack system status, multiple protections.

Battery reverse connection protection,anti-power control function.

Parameter

Battery Type

High Voltage Stackable LiFePO4 Battery

Battery Voltage

153.6V-409.6V

Battery Rated Cpacity

10.24kWh-20.48kWh

Battery system Capacity

10.24kWh-327.68kWh

Battery Cycle

6000 Cycles

Rated Power

8.8kVA

Output Voltage

400V/360~440V

Max PV Charge Current

12.5A

Max PV Input Power

10.4kW

Mppt Operating Voltage

180V-850V

MPPT efficiency

99.5%

Battery charge /discharge efficiency

96.6%

Peak Power

200W

Open Circuit Voltage

20V

Working Current

18V

Solar Energy Conversion Rate

≥22%

Connection Method

26S2P

Solar Panel System Peak Power

10.4kW

High Voltage Hybrid home solar power

Features

Complete home solar system solution,Modular battery design ,capacity can be freely combined up to 327kWh.

High voltage home solar system, higher energy conversion efficiency, less energy loss.

Long cycle life and superior performance,Module design help for quick installation.

Input power source priority can be set by users.

Intelligent battery management system, all-round monitoring of battery pack system status, multiple protections.

Battery reverse connection protection,anti-power control function.

Parameter

Certification

Hailei VDE Certificate

Hailei HERO-HV-VDE2510-50

Hailei HERO-HV-IEC62619

Hailei VDE Certificate

Hailei UL certificate

Haieli HERO-HV-CE

Hailei CE Certificate

Hailei IEC Certificate

Hailei ICE Certificate

Hailei CE Certificate

Hailei UN38.3 test report

Hailei UN38.3 air transport

Hailei UN38.3 land transport

ISO9001:2015 certification

ISO9001:2015 certification

CQC product certification

Hailei CE Certificate

Hailei MSDS certification
