HERO-LVA

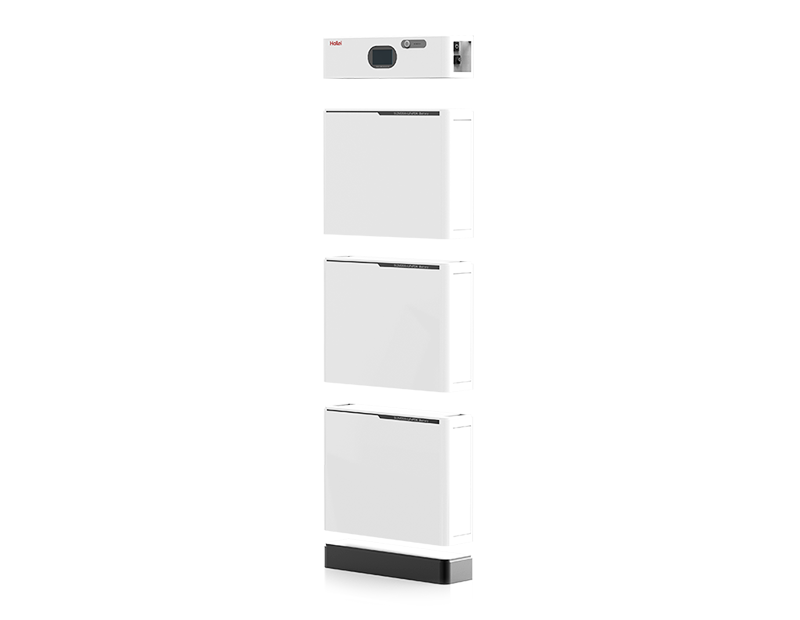

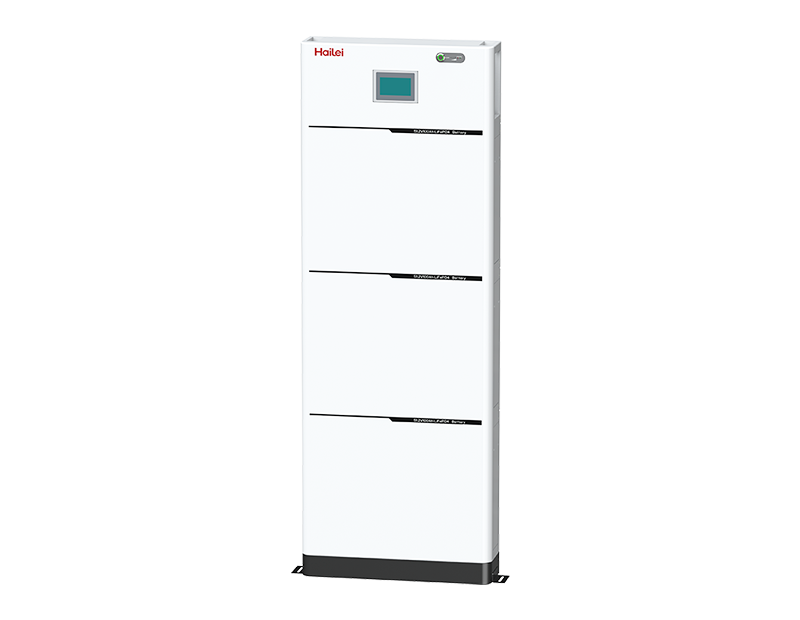

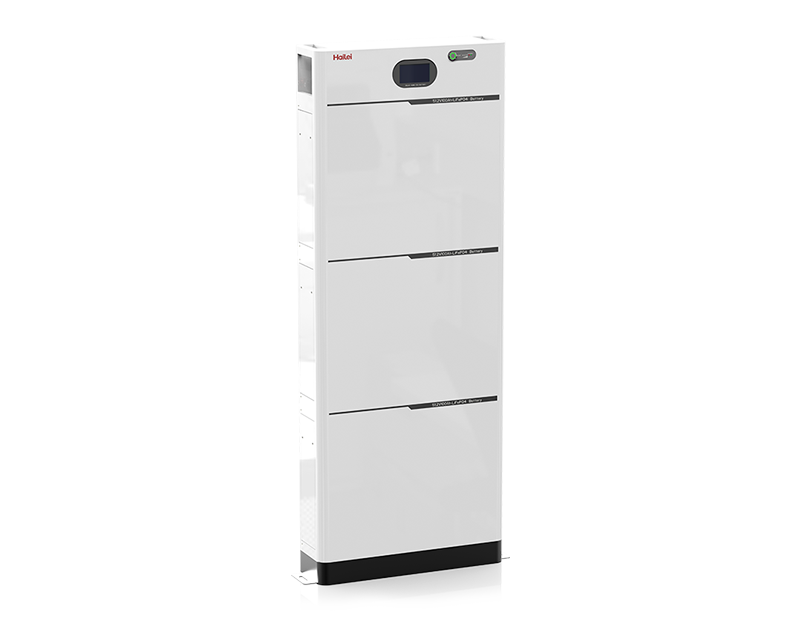

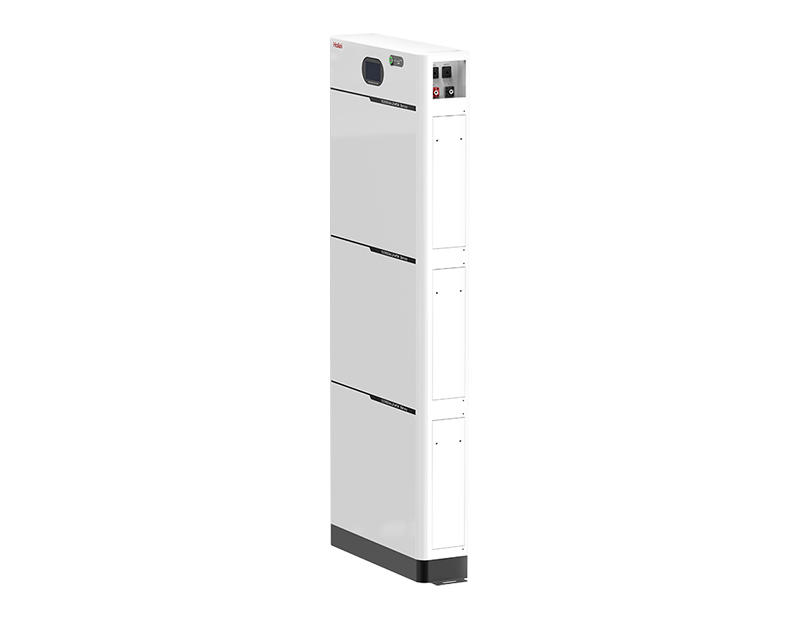

Hero series of Low-voltage stacking products uses 5.12kWh lithium iron phosphate batteries as a single module, 5kW output power and support 4 clusters in parallel(5kWh~15kWh capacity). It combines with home microgrid, touch LCD display, and support screen selection protocol. Its fashionable appearance design makes it more suitable for home energy storage application scenarios.

Buy Now Download

Features

LED screen display the parameters of the equipment in real time

Intelligent battery management system

Thin stack design: Modular structure for easy installation

Support a variety of communication protocols, support RS485, RS232, CAN etc

Parameter

Basic Parameters	2-module	3-module
Model	HERO-LVA512200	HERO-LVA512300
Number of battery parallel	2	3
Rated energy	10.24kWh	15.36kWh
Dimension (WHTmm)	6001125160mm	6001575160mm
Rated voltage	51.2V	51.2V
Rated Capacity	200Ah	300Ah
Rating charging and discharge multiplied	0.5C	0.5C
Depth of discharge	90%	90%
Voltage work	43.2-58.4V	43.2-58.4V
Output Power	5KW	5KW
Communication Interface	CAN/485	CAN/485
Cycles	4000@25℃ /0.5C/80%DOD	4000@25℃ /0.5C/80%DOD
Protection level	IP65	IP65
Cooling method	Natural cooling	Natural cooling
Run temperature range	-20-55℃	-20-55℃
Storage temperature	-15-40℃	-15-40℃
Relative humidity	0-90%RH	0-90%RH
Certification standards	IEC 62619/CE/UN38.3 /MSDS	IEC 62619/CE/UN38.3 /MSDS
