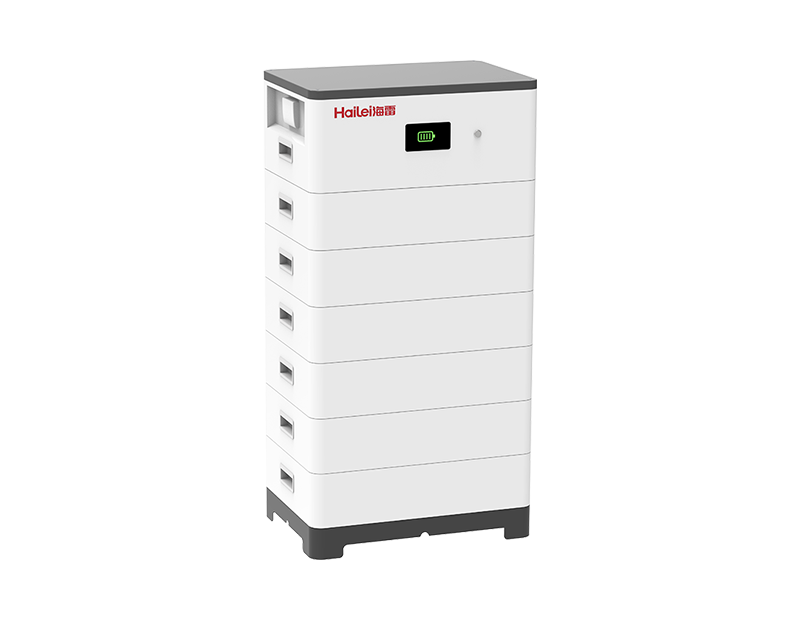

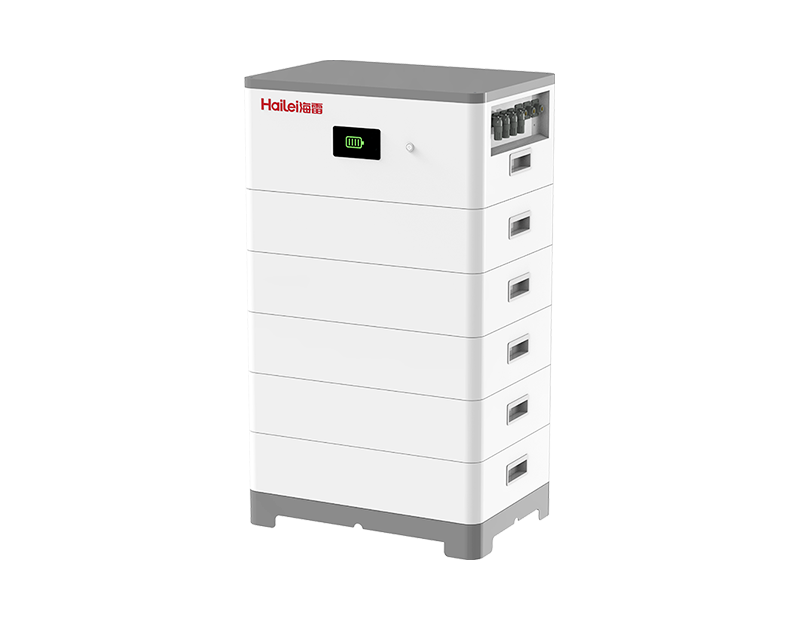

Hero-HVS1

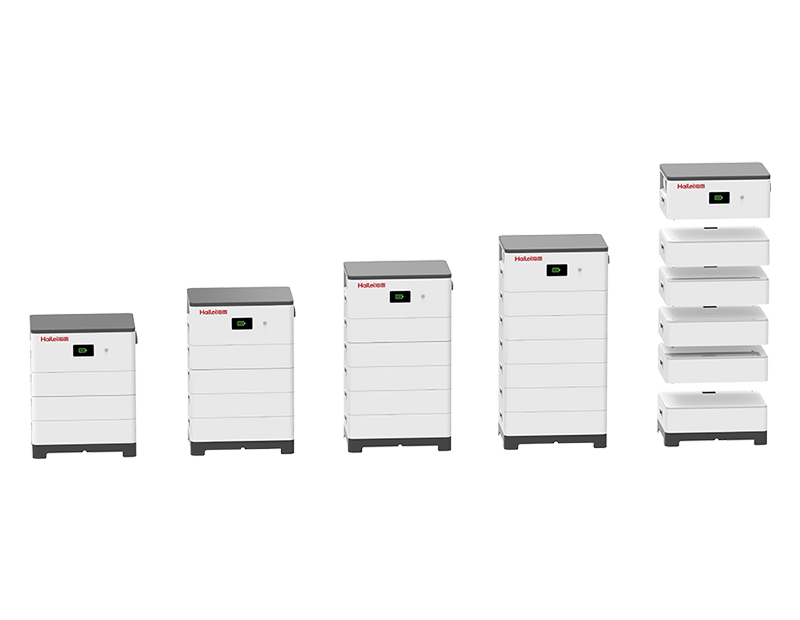

Hero series of High-voltage residential energy storage system is a modular high-voltage battery suitable for residential energy storage. The single cluster maximum supports 6 pieces of stacking, capacity support 7.6kWh~15.36kWh optional. The product supports up to 4 clusters in parallel and can be used with a three-phase hybrid inverter to solve the electricity needs of the entire house.

Buy Now Download

Features

Support a variety of communication protocols, support RS485, RS232, CAN etc

Modular structure for easy installation

Long cycle life

Intelligent battery management system

LED lights display the parameters of the equipment in real time

Supports up to 4 clusters in parallel

Can be used with hybrid inverter

Parameter

Basic Parameters	3-Modules	4-Modules	5-Modules	6-Modules
Nominal Capacity(kWh)	7.68	10.24	12.8	15.36
Cell Matching	48S1P	64S1P	80S1P	96S1P
Working Voltage Range(V)	136.8-172.81	182.4-230.4	228-288	273.6-345.6
Weight（kg）	115	145	175	205
Nominal voltage(V)	153.6	204.8	256.0	307.2
Dimension (WxDxH) (mm)	550x430x697.5	550x430x826.5	550x430x955.5	550x430x1084.5
Battery Type	LFP(LiFePO4)
Nominal Working Current	50
Communication Port	CAN/RS485
Working Temperature Range	Charge:0-45°C/Discharge:-10-50°C
Waterproof	IP55
Installation Method	Floor-standing
Cycle Life	>6000,25°C/77°F,80%DOD
Peak charge/discharge current(@25°C,5S)	63A
Discharge rate of Module	≤3.5%/month/@25°C
Module Series connection/Module	3S~6S
Parallel connection	4 units in parallel
