ATOM-MES

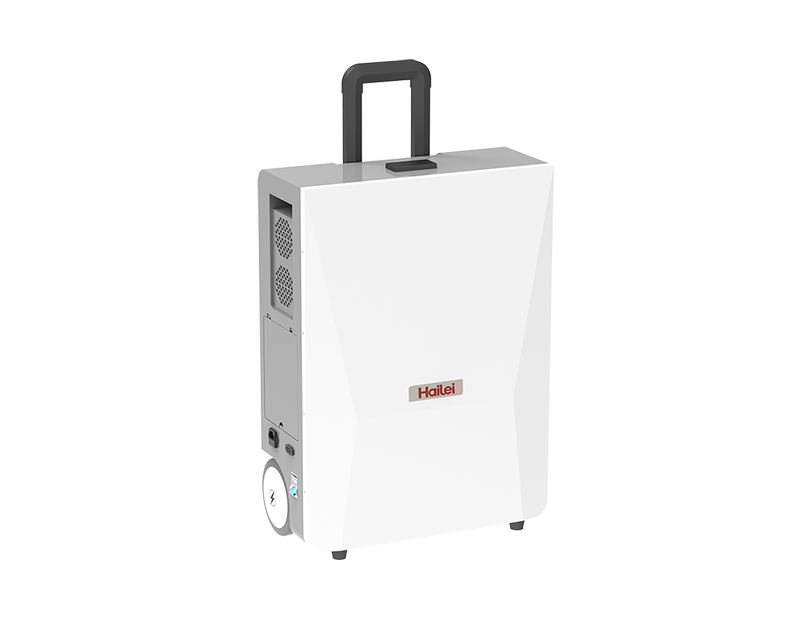

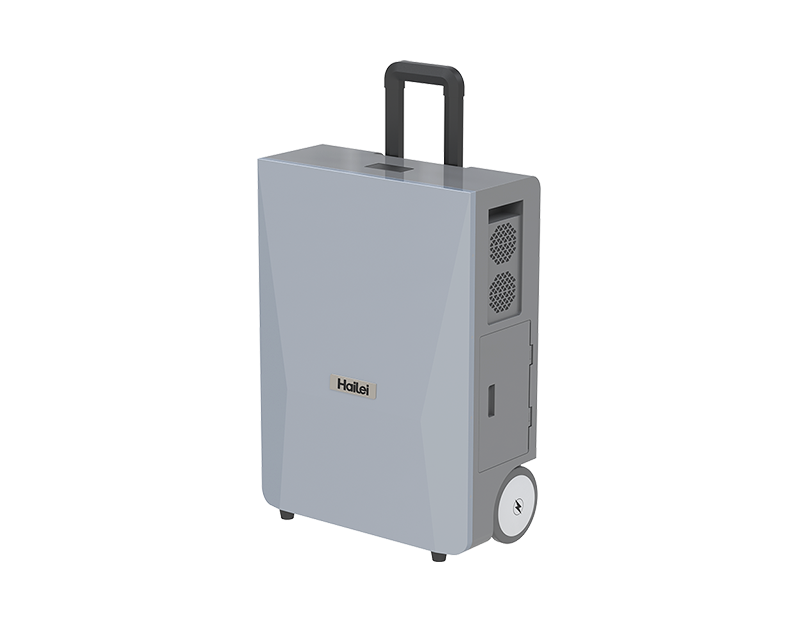

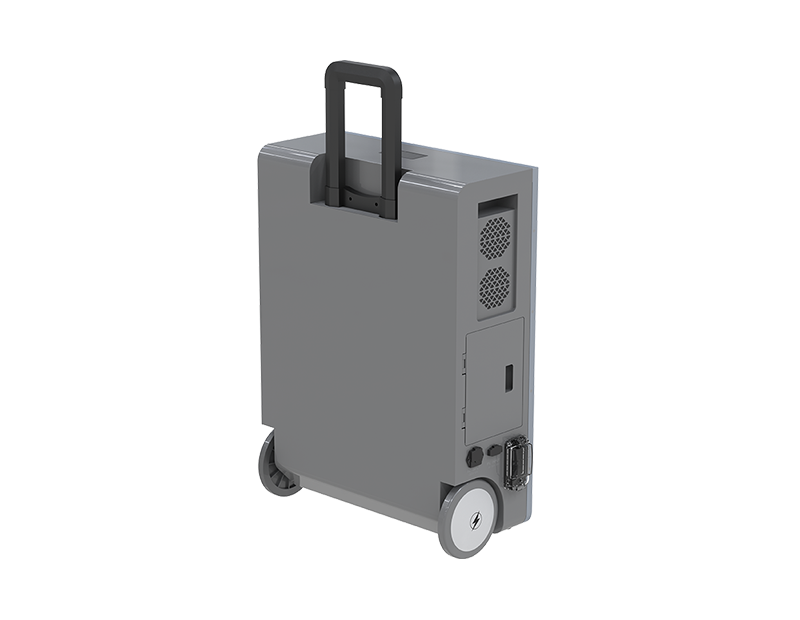

ATOM series of Mobile Energy System, 3.5kWh lithium iron phosphate battery and 3.5kW unidirectional inverter integrated mobile energy storage generator are both portable and functional. It trolley integrates energy storage batteries and hybrid inverters, which is equivalent to a small mobile power station; as a distributed energy storage power source.

Buy Now Download

Features

Light weight, Small size

Long cycle life

Intelligent battery management system

Internal use of LiFePO4 battery

High power intelligent AC coupling machine

In the extreme performance safety test, the battery will not catch fire, explode, leak, and be safer to use

Parameter

Basic Parameters	Specification
Model	ATOM SC-3.5 (movable)
Battery type	LiFePO4
Capacity	3686.4Wh/16S1P
PV input	12Vdc-150Vdc 25A/2400w max
AC output	230V 10A/2300W Max
Operating temperature	0℃ -40℃
AC output	220V/3600W Max
USB-C1 output	PD100W
USB-C2 output	PD65W
USB-A1~A4 output	4X18W
Ac output waveform	sine wave output
Cigarette lighter output	12V/10A Max
Ec5 output	12V/30A Max
DC output	12V/10A Max
Car charger output	3500W Max
Car charger APP control	wifi and bluetooth connect to internet
Size(W* H* D)mm	500708.5240mm
