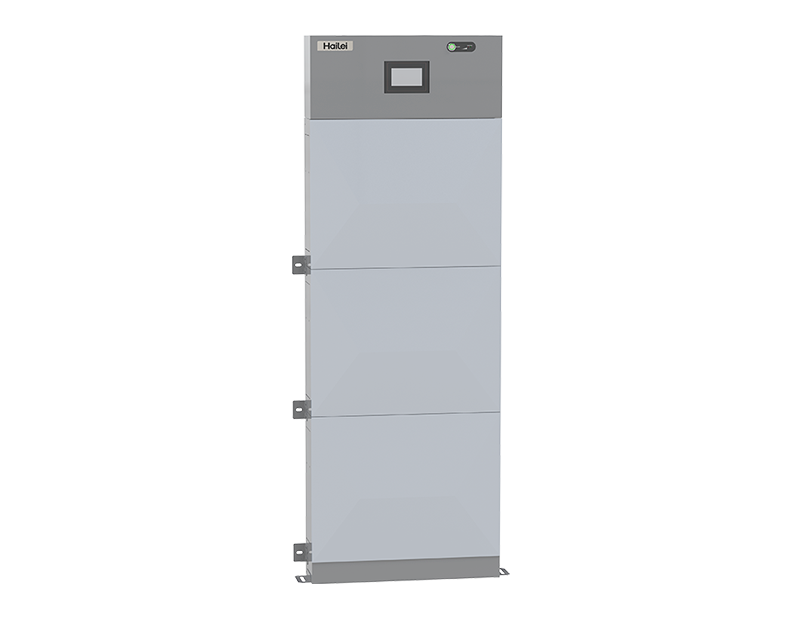

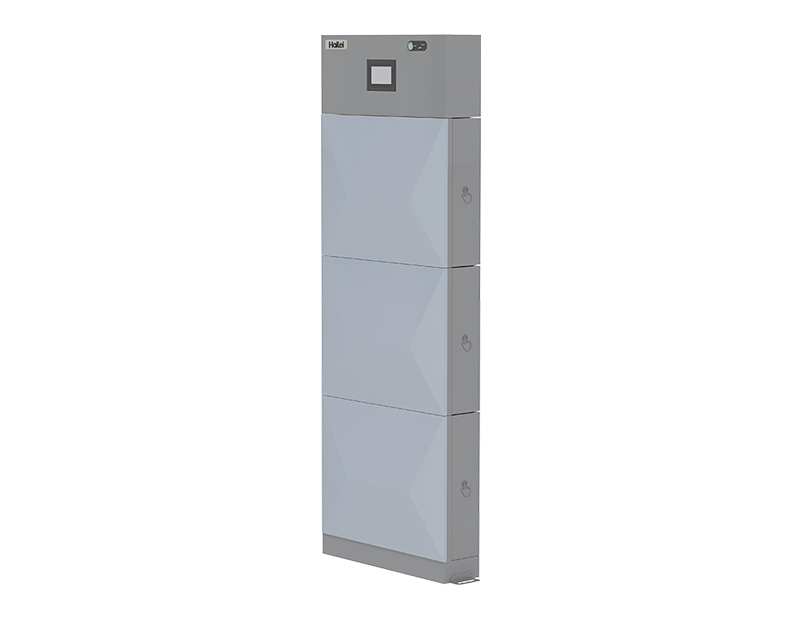

ATOM-LS

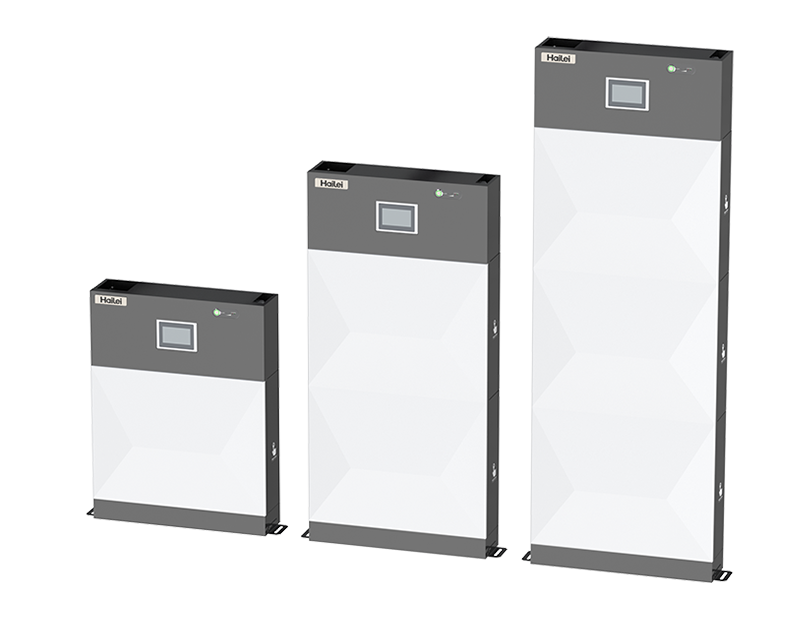

Atom series of Low-voltage stacking products using 5.12kWh lithium iron phosphate battery as a single module, supporting 5kWh~15kWh capacity flexible options and its fashionable appearance design makes it more suitable for home energy storage application scenarios. Also, it equips with wifi module, APP monitoring and remote upgrade function.

Buy Now Download

Features

APP monitoring: Real-time monitoring and Remote upgrade

IP65: Indoor and outdoor installation options

C3+ class Anti-corrosion battery housing

Cycle Life: Up to 6000+ cycles

High safety: Equipped with advanced BMS, with voltage, current, power, temperature, shunt trip and other protection functions

With active balancer: Extend the battery service life

Parameter

Basic Parameters	2-module	3-module
Model	ATOM LS-10.24	ATOM LS-15.36
Number of battery parallel	2	3
Rated energy	10.24kWh	15.36kWh
Dimension (LWH mm)	6001671240mmm	6001671700mm
Rated voltage	51.2V	51.2V
Rated Capacity	200Ah	300Ah
Rating charging and discharge multiplied	0.5C	0.5C
Depth of discharge	90%	90%
Voltage work	43.2-58.4V	43.2-58.4V
Output Power	5KW	5KW
Communication Interface	CAN/485	CAN/485
Cycles	6000@25℃ /0.5C/80%D0D	6000@25℃ /0.5C/80%D0D
Protection level	IP65	IP65
Cooling method	natural cooling	natural cooling
Run temperature range	-20-55℃	-20-55℃
Storage temperature	-15-40℃	-15-40℃
Certification standards	IEC 62619/CE/UN38.3 /MSDS
