Residential energy storage system_Solar energy system_Home energy storage system-ShenZhen HaiLei New Energy Co., Ltd.

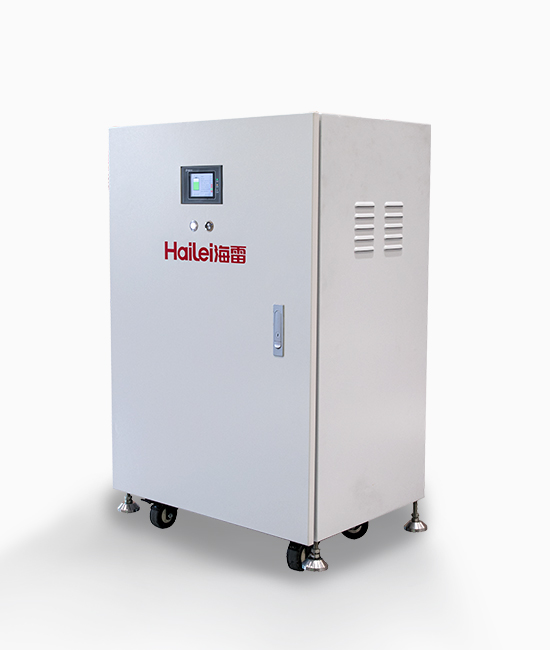

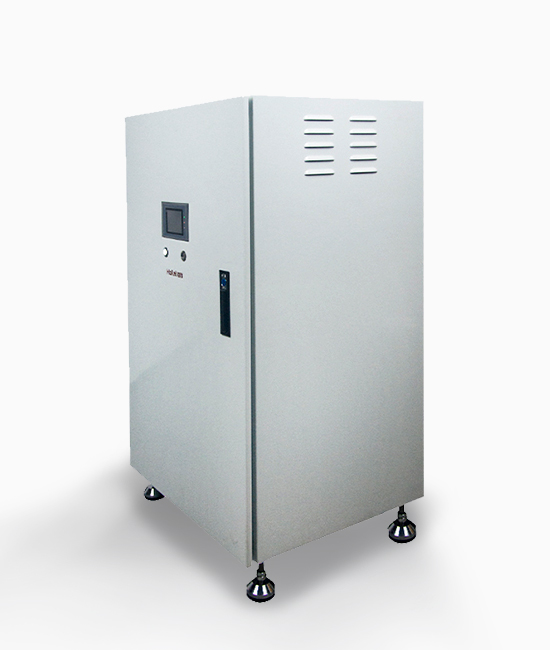

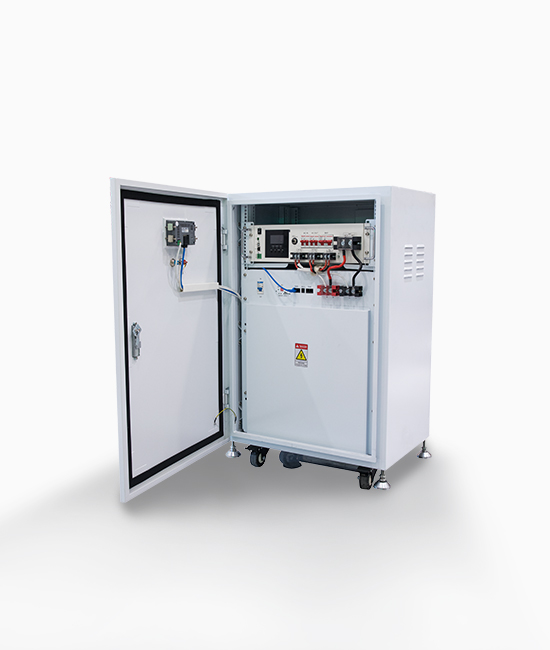

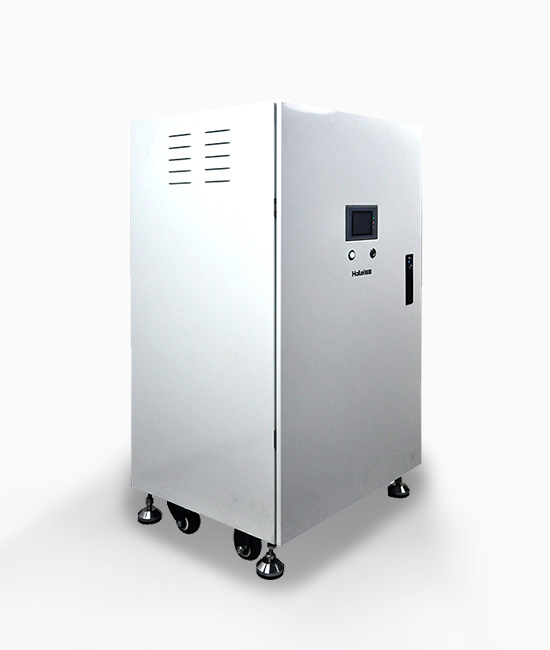

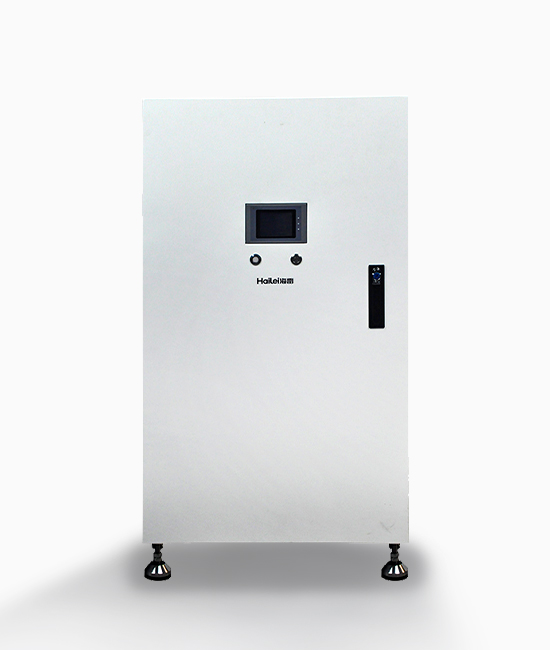

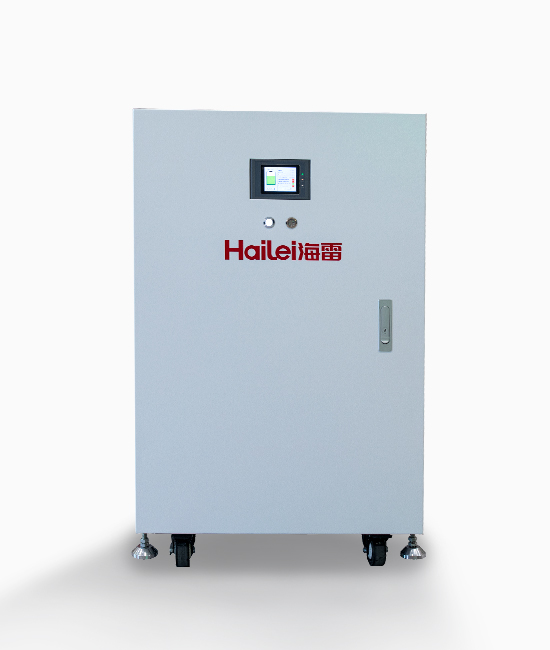

5kW All-in-one energy storage system

5kW All in one energy storage system Integrate solar charge controller, system controller and inverter, lithium battery and lithium battery special management system-BMS into one, effectively use the energy storage system to convert clean, environmentally friendly renewable energy into ecological electricity. It has the advantages of high efficiency, energy saving and stable power supply, especially using LiFePO4 battery as the carrier of power storage, which obviously prolongs the service life of the battery.

Buy Now Download

Features

A variety of working modes Users can choose mains priority, photovoltaic priority, etc. according to their own needs

Intelligent lithium battery BMS:Proprietary active equalization technology，high-precision voltage collection，to ensure the consistency of the battery.

All in one design,Integrated energy storage system, fast and convenient installation, user-friendly interface display.

Humanized alarm function and perfect online protection function ensure the safe operation of the system during use

Parameter

Model

HL-IESS510

AC Output Rated Power

5kW

Output Peak Power

10000VA

Rated Output/ Input Voltage

220V/230V

Input Voltage Range

(170Vac-280Vac)±2%

Output Frequency

50HZ/60HZ(automatic detection)

Battery Capacity

10.24kWh（51.2V 200AH）

Battery Stardand Charge Voltage

58.4V（settable）

Battery Max Continuous Charging Current

100A

Battery Max Continuous Discharging Current

100A

Battery Cut-off Voltage

40V

Dimension

1100*590*490mm

Weight

207KG

5kW All-in-one energy storage system

Features

A variety of working modes Users can choose mains priority, photovoltaic priority, etc. according to their own needs

Intelligent lithium battery BMS:Proprietary active equalization technology，high-precision voltage collection，to ensure the consistency of the battery.

All in one design,Integrated energy storage system, fast and convenient installation, user-friendly interface display.

Humanized alarm function and perfect online protection function ensure the safe operation of the system during use

Parameter

Certification

Hailei VDE Certificate

Hailei HERO-HV-VDE2510-50

Hailei HERO-HV-IEC62619

Hailei VDE Certificate

Hailei UL certificate

Haieli HERO-HV-CE

Hailei CE Certificate

Hailei IEC Certificate

Hailei ICE Certificate

Hailei CE Certificate

Hailei UN38.3 test report

Hailei UN38.3 air transport

Hailei UN38.3 land transport

ISO9001:2015 certification

ISO9001:2015 certification

CQC product certification

Hailei CE Certificate

Hailei MSDS certification
