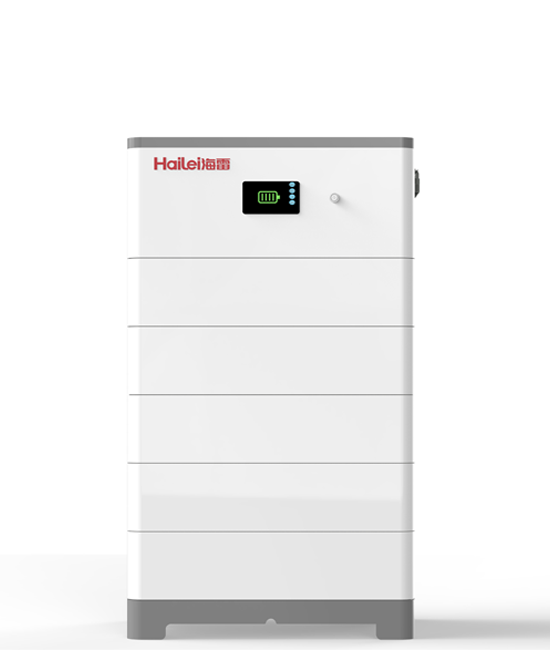

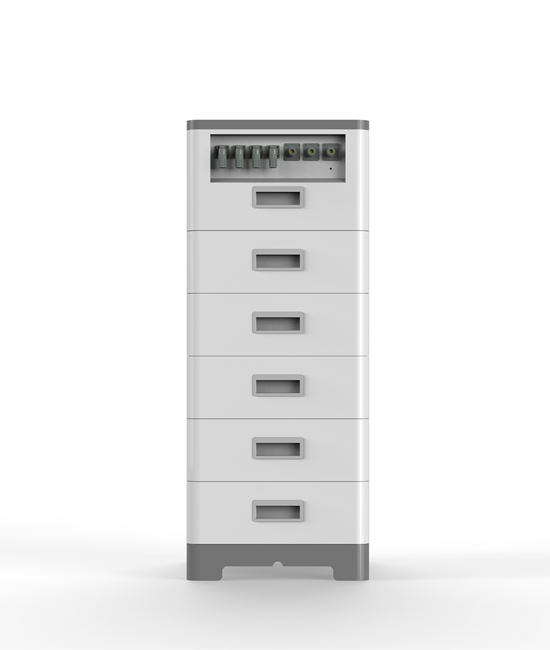

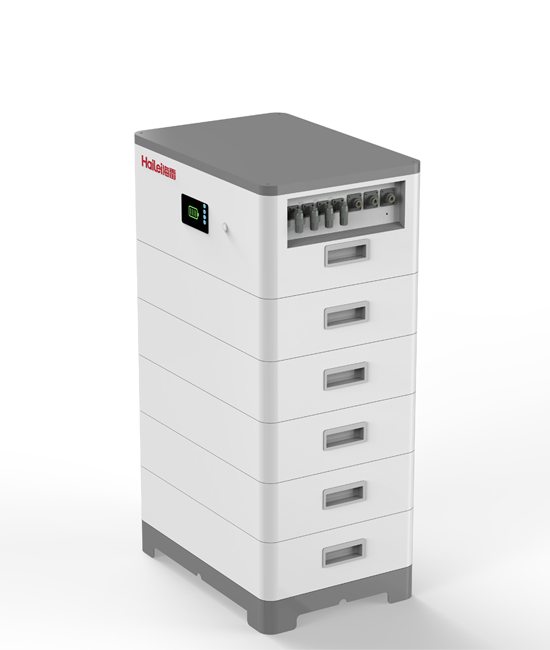

HERO-HV series_ShenZhen HaiLei New Energy Co., Ltd.

Features

Grade A CellsUsing high quality lithium iron phosphate battery as the main body of energy storage,with feature of large capacity,light weight,large power.

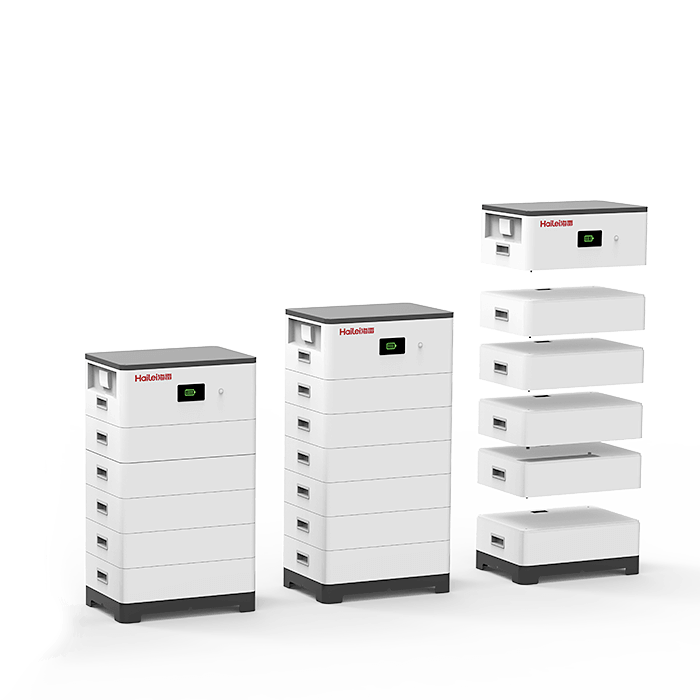

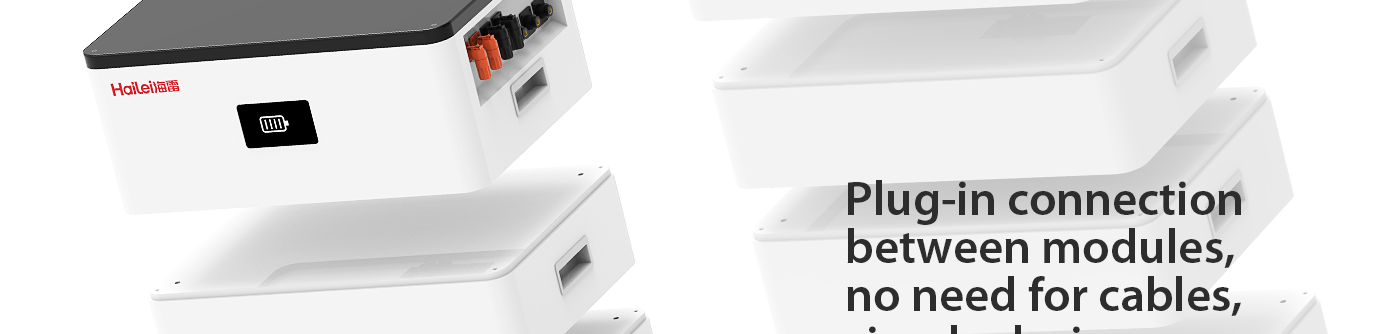

Easy InstallationModular structure, can form a small combination of various energy levels, easy maintenance, plug and use.

Top safety certificationThe battery has passed TÜV VDE2510-50 certification.

IP55 ProtectionIndoor/outdoor Installation,Smaller footprint,Save your valuable space

Status In Real TimeLED lights display the parameters of the equipment in real time, and the running status is clear at a glance.

High CapacityThe maximum capacity of a single cluster is 15.36kWh, and it supports 4 clusters in parallel

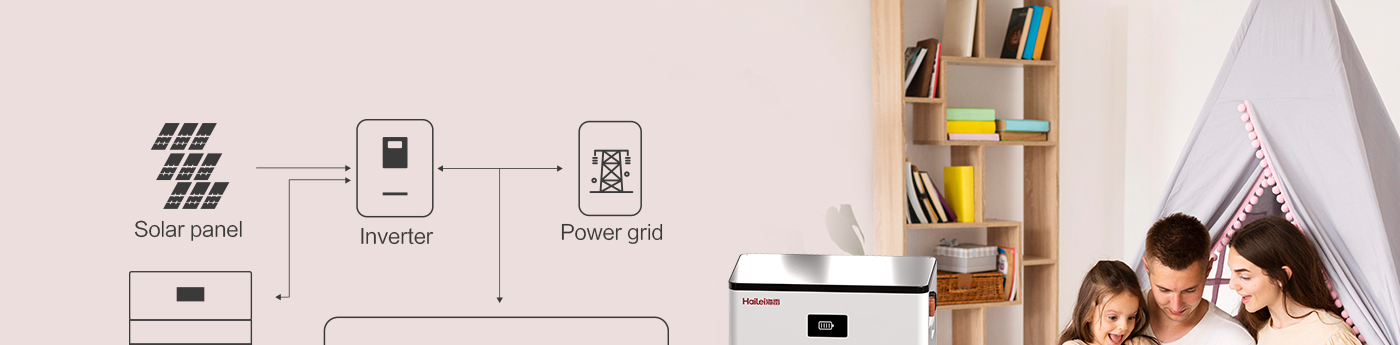

Good CompatibilityIt can match to main hybrid inverter in the market,easy to use.

Parameter

Model

HERO-HV series

Battery Type

LiFePO4

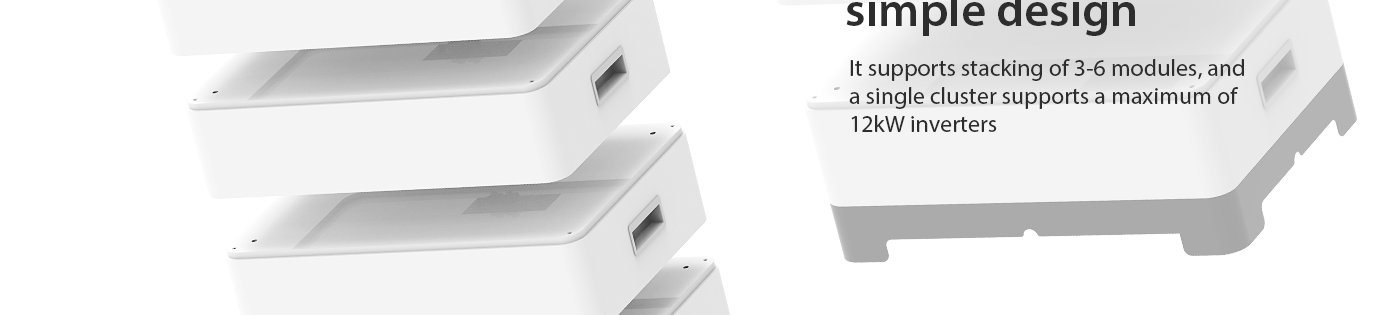

Module Range

3-6

Capacity Range

7.68-15.36kWh

Nominal Voltage Range

153.6-307.2V

Rated Charge/Discharge Current

25A/30A

Power Control Unit Dimension

550*380*230mm

Battery Module Dimension

550*380*130mm

Weight (kg)

104-188KG

Cycle life

6000 cycles

Working temperature (℃)

Charging：0-45℃

Discharging:-20-50℃

Communication Protocol

CAN/RS485

Protection rate

IP55

Certification

CE/UN38.3

Maximum Number In Parallel

HERO-HV series

Features

Grade A CellsUsing high quality lithium iron phosphate battery as the main body of energy storage,with feature of large capacity,light weight,large power.

Easy InstallationModular structure, can form a small combination of various energy levels, easy maintenance, plug and use.

Top safety certificationThe battery has passed TÜV VDE2510-50 certification.

IP55 ProtectionIndoor/outdoor Installation,Smaller footprint,Save your valuable space

Status In Real TimeLED lights display the parameters of the equipment in real time, and the running status is clear at a glance.

High CapacityThe maximum capacity of a single cluster is 15.36kWh, and it supports 4 clusters in parallel

Good CompatibilityIt can match to main hybrid inverter in the market,easy to use.

Parameter

Certification

Hailei VDE Certificate

Hailei HERO-HV-VDE2510-50

Hailei HERO-HV-IEC62619

Hailei VDE Certificate

Hailei UL certificate

Haieli HERO-HV-CE

Hailei CE Certificate

Hailei IEC Certificate

Hailei ICE Certificate

Hailei CE Certificate

Hailei UN38.3 test report

Hailei UN38.3 air transport

Hailei UN38.3 land transport

ISO9001:2015 certification

ISO9001:2015 certification

CQC product certification

Hailei CE Certificate

Hailei MSDS certification
